Description
–> NOTE: We only sell in-stock items, ready to transfer. <–
We have eliminated the wait time by investing heavily in parts

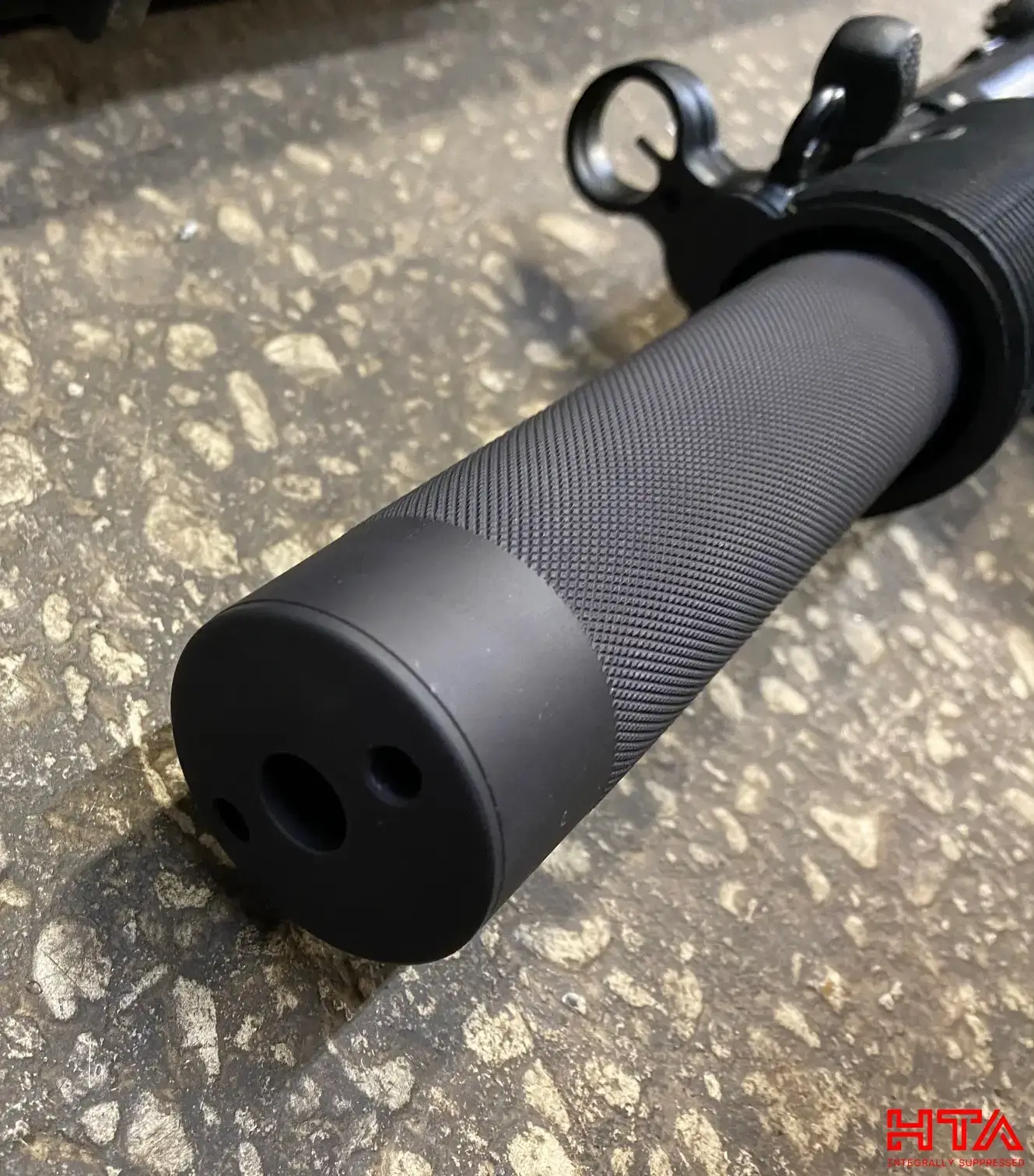

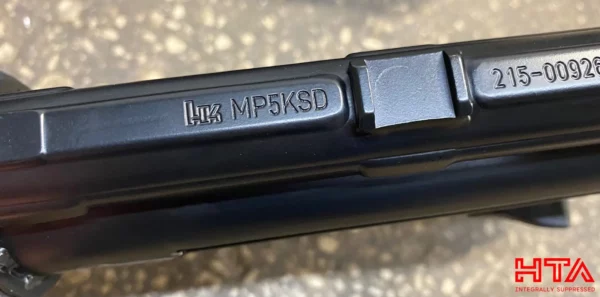

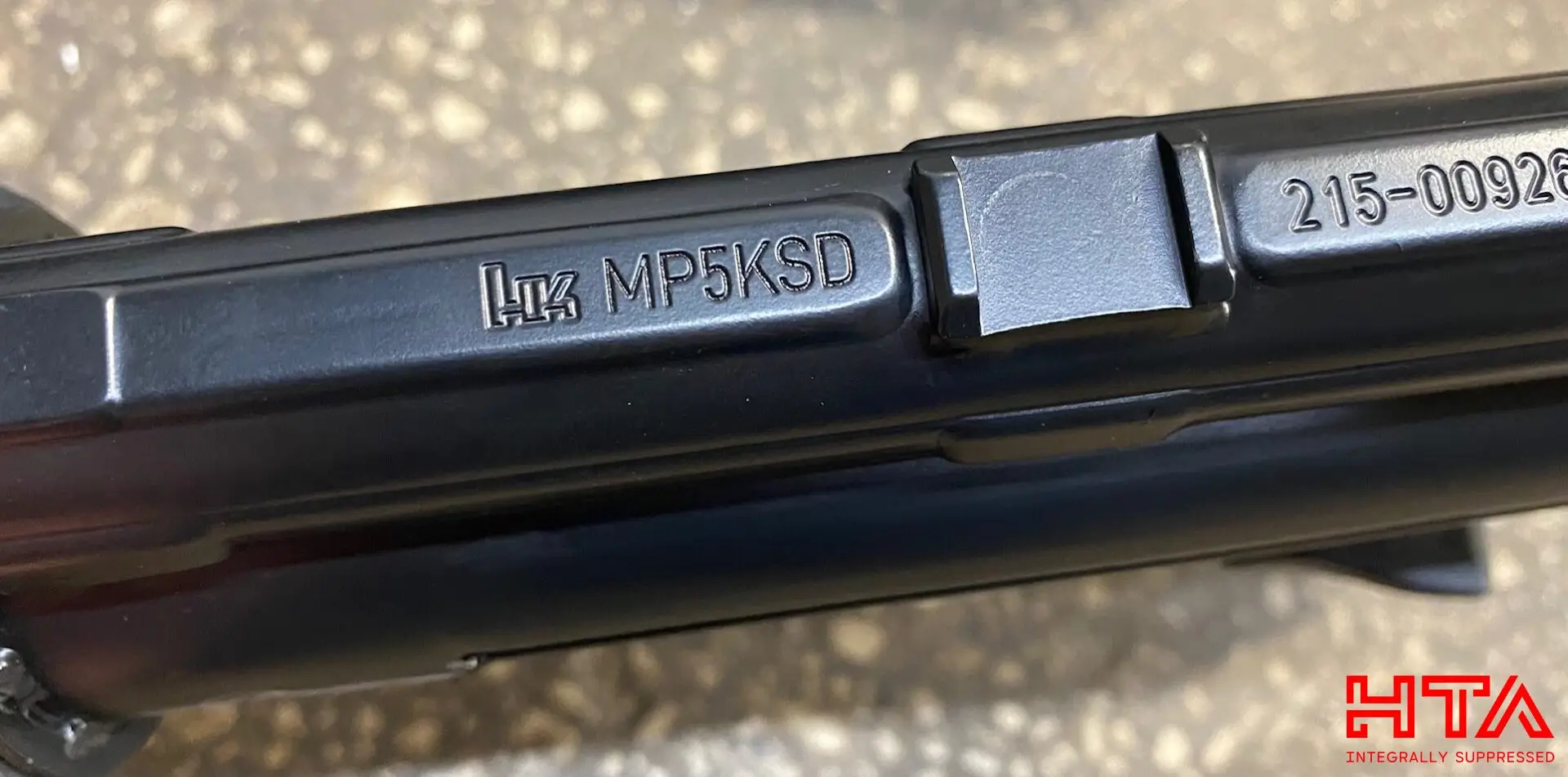

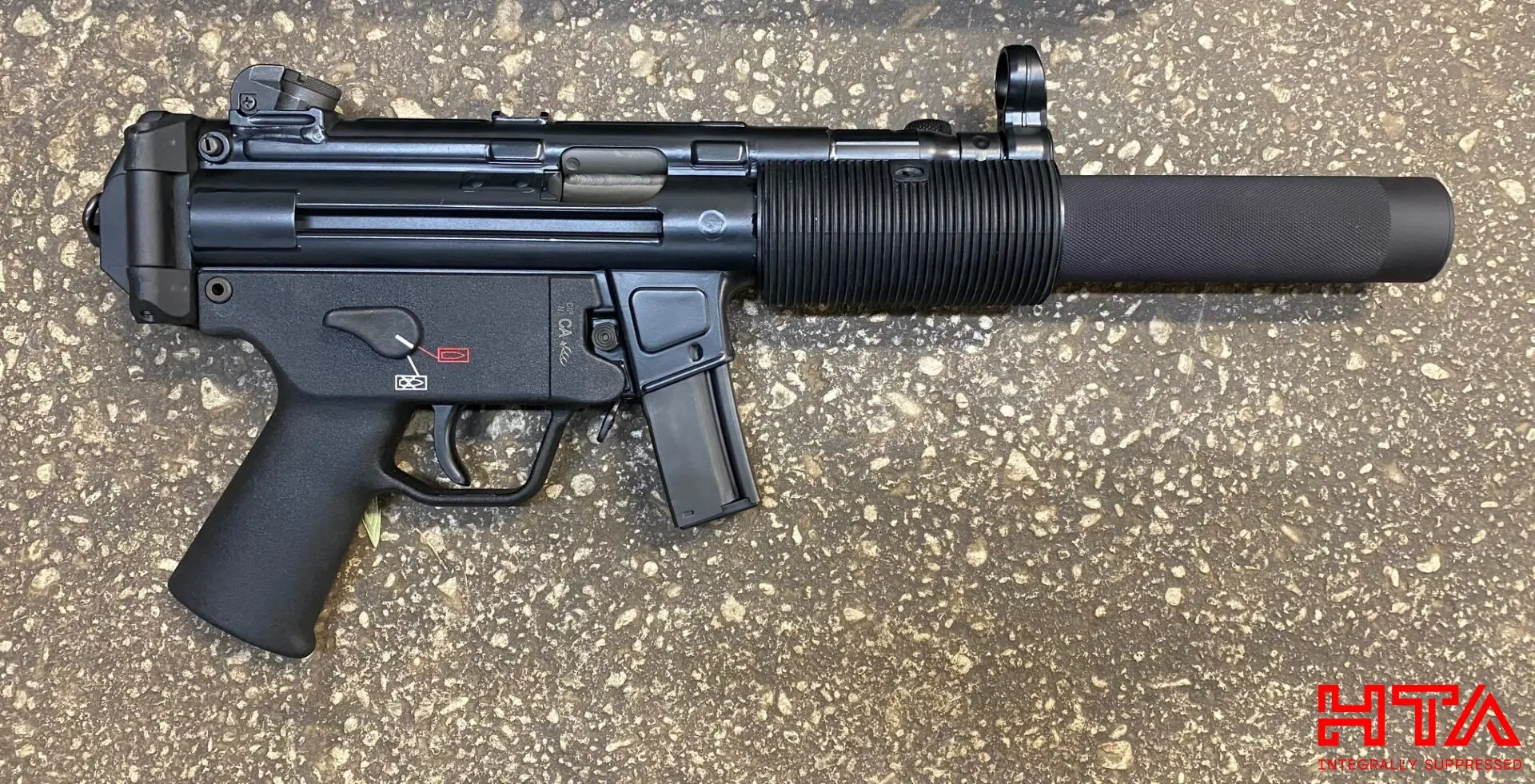

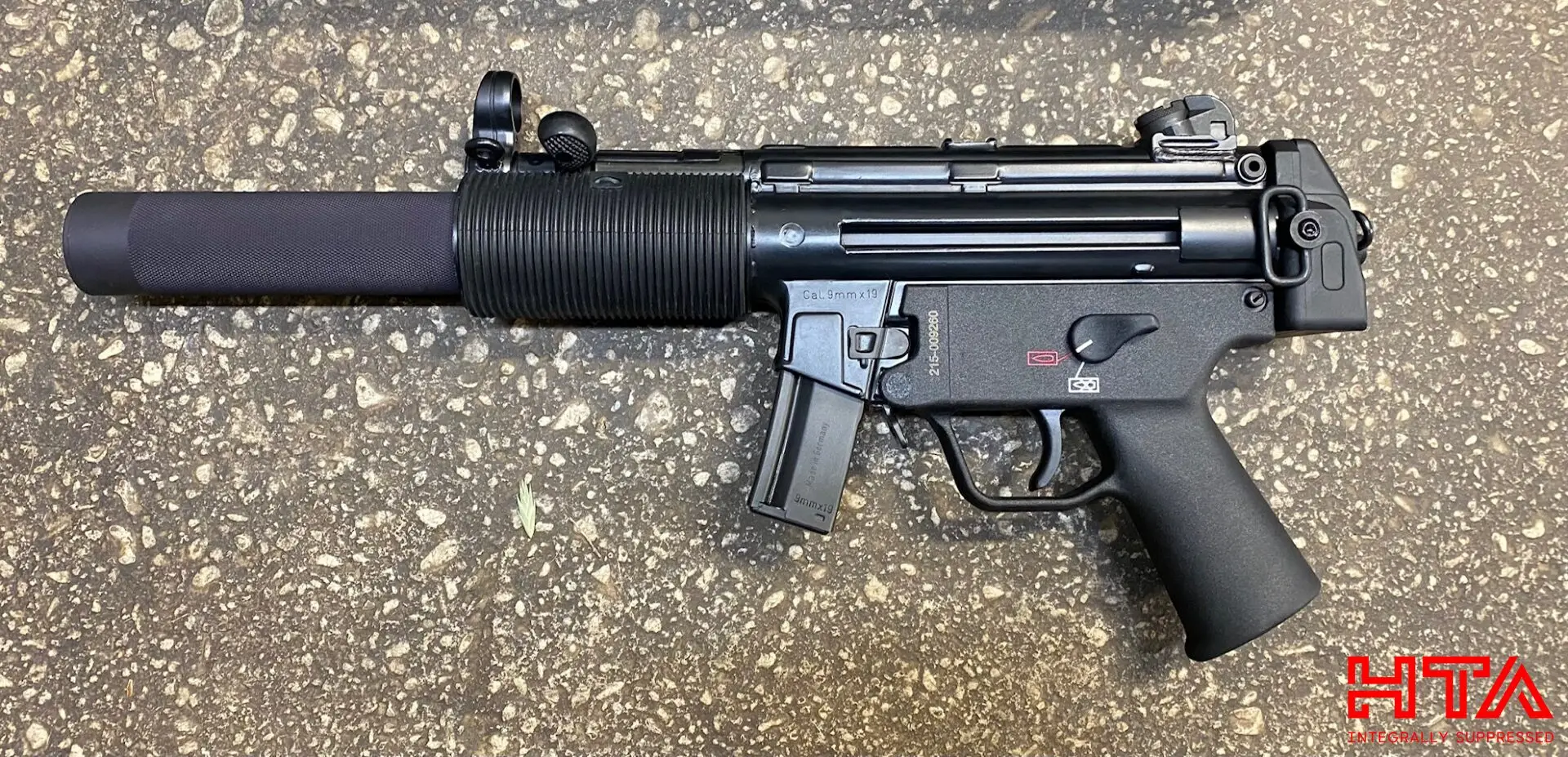

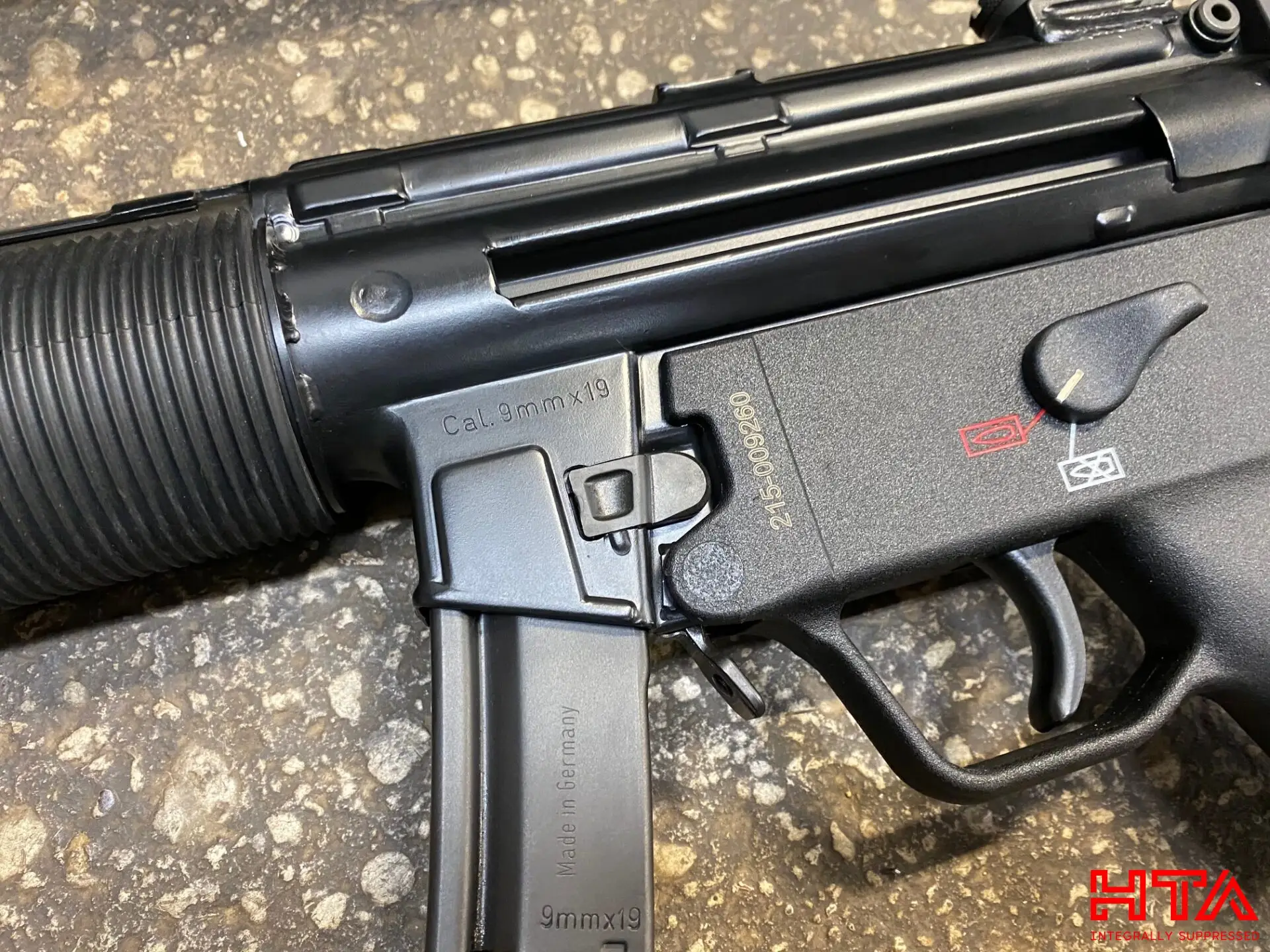

In 2023 HiTec Arms initiated design work on a sound-suppressed variant of the MP5K, designated the MP5KSD (SD—Schalldämpfer German for “sound suppressor”), The HTA MP5KSD features an integral but detachable 228 mm (9.00 inch) aluminum sound suppressor and a lightweight bolt. HTA custom HP5KSD shroud and rubber hand guard. The weapon’s 146 mm (5.75 in) barrel has 30 2.5 mm (0.1 in) ports drilled forward of the chamber through which escaping gases are diverted to the surrounding sealed tubular casing that is screwed onto threading on the barrel’s external surface just prior to the ported segment. Keeping the original SD barrel length not only allows for using all standard SD suppressors, it also removes the need for a special cut down version of the SD suppressor, while providing the high 900+ round per minute cyclic rate and compact K frame. The suppressor itself is divided into two stages; the initial segment surrounding the ported barrel serves as an expansion chamber for the propellant gases, reducing gas pressure to slow down the acceleration of the projectile. The second, decompression stage occupies the remaining length of the suppressor tube and contains aluminum baffles with several compartments which increase the gas volume and decrease its temperature, deflecting the gases as they exit the muzzle, so muffling the exit report.
The bullet leaves the muzzle at subsonic velocity, so it does not generate a sonic shock wave in flight. As a result the bullet’s muzzle velocity was lowered anywhere from 16% to 26% (depending on the ammunition used) while maintaining the weapon’s automation and reliability. The weapon was designed to be used with standard supersonic ammunition with the suppressor on at all times.
# DO NOT USE SUBSONIC AMMUNITION EVER IN THIS FIREARM #
